• Luggage rack, roof-mounted, Black, includes cross rails and integral roller to assist in loading items when in park
• Bumper, front, painted
• Bumper, rear, painted step, includes pad
• Air dam, Dark Gray, unique
• Moldings, lower rocker
• Wheel flares, front and rear (refer to Color Compatibility chart for Matte Black vs. color-keyed wheel flares)
• Assist steps, tubular, mounted between front and rear wheels at bottom of rocker panel
• Grille, color-keyed
• Headlamps, dual halogen composite, includes flash-to-pass feature and automatic lamp control
• Daytime running lamps, includes automatic exterior lamp control
• Fog lamps, front, round, halogen
• Mirrors, outside rearview, power folding, power adjustable, heated, color- keyed, driver side electrochromic (light-sensitive auto dimming), turn signal in glass, with ground illumination and curb-tilt
• Glass, Solar-Ray deep tinted (all windows except light tinted glass on windshield, driver and front passenger)
• Wipers, intermittent, front, wet-arm with pulse washers
• Door handles, color-keyed
• Body, liftgate with liftglass, rear door system, includes rear-window wiper/washer

• Seats, front leather seating surfaces power reclining full-feature buckets, includes driver and passenger adjustable head restraints, power lumbar, 10-way power adjustable, inboard armrests, heated seat cushion and seatbacks, 2-position driver-side memory, storage pockets and floor console
• Seats, middle leather seating surfaces 60/40 split-folding bench, 3- passenger with center armrest and rear passenger easy entry (Upgradeable to (AL4) Seats, middle leather seating surfaces buckets)
• Seats, rear 3rd row vinyl bench, 3-passenger, 1-piece removable
• Console, floor, includes storage area, map pocket, cupholders and integrated 2nd row audio controls
• Floor covering, color-keyed carpeting
• Floormats, color-keyed, carpeted front and 2nd row, removable
• Steering wheel, leather-wrapped rim, Black
• Steering wheel, mounted controls, includes audio and driver information center controls
• Pedals, power adjustable
• Driver Information Center, monitors numerous systems
• Warning tones, headlamp on, key-in-ignition, driver and right front passenger safety belt unfasten, turn signal on
• Tire pressure monitoring system (does not apply to spare tire) (Requires 1/2 ton Models.)
• Windows, power, includes driver express-down and lockout features
• Door locks, power programmable, includes lockout protection
• Universal transmitter, HomeLink, includes garage door opener, programmable
• Cruise control, electronic with set and resume speed, includes telltale in instrument panel cluster
• Keyless entry, remote, includes 2 transmitters, panic button and content theft alarm
• Theft-deterrent system, PASSLock II
• Air conditioning, tri-zone, manual, individual climate settings for driver, right front passenger and rear passengers, includes front and rear HVAC systems (Upgraded to (CJ2) Air conditioning, tri-zone, automatic when (CF5) Sunroof, power or (U42) Entertainment system is ordered)
• Defogger, rear-window, electric
• Sound system, ETR AM/FM stereo with in-dash 6-disc CD changer, includes seek-and-scan, digital clock, auto-tone control, speed-compensated volume, TheftLock and Radio Data System (RDS) (Upgradeable to (UM8) Sound system, ETR AM/FM stereo with CD player, Touch-screen Navigation Radio (TNR).)
• Sound system feature, Bose Premium speaker system, 9 speakers, includes subwoofer in center console
• Sound system feature, rear audio controls, includes dual headphone jacks (headphones not included), power outlet and controls for volume, station selection and media
• OnStar, 1-year Safe and Sound Service, includes automatic notification of air bag deployment, stolen vehicle tracking, emergency services, roadside assistance, remote door unlock, remote horn and lights, GM Goodwrench remote diagnostics, AccidentAssist and online concierge. Drivers can also obtain the available voice-activated, hands-free Personal Calling service and Virtual Advisor that provides location-based traffic and weather reports and other personalized information (Not available with FDR order types. Not available with a ship-to of Puerto Rico or the Virgin Islands. If the order type is FDR, (UE0) OnStar, delete will be forced on. Visit www.onstar.com for system information and details.)
• Power outlets, auxiliary, 2 on instrument panel, 1 in cargo area, 12-volt
• Mirror, inside rearview, 8-point compass, outside temperature indicator and right front passenger air bag status
• Console, overhead mini includes map lights and rear seat HVAC controls (Includes sunroof controls when (CF5) Sunroof is ordered)
• Headliner, cloth
• Visors, padded, driver and passenger side with cloth trim, extenders, illuminated vanity mirrors and corner storage pockets on back of visors
• Assist handles, front passenger and outboard 2nd row seats
• Lighting, dome lamp, driver and passenger side door switch with delayed entry feature, cargo lamps, door handle or keyless remote activated illuminated entry, map lights in front and 2nd seat positions
• Cargo Package, includes cargo shade, cargo net, cargo mat and luggage rack center rails
• Key, single, 2-sided

• Brakes, 4-wheel antilock, 4-wheel disc
• Air bags, frontal, dual-stage, driver and right front passenger, includes Passenger Sensing System (front passenger air bag status on inside rearview mirror) (Always use safety belts and proper child restraints, even with air bags. Children are safer when properly secured in a rear seat. See the Owner's Manual for more safety information)
• Safety belts, 3-point, driver and front passenger, in all seating positions except center seating position in 1st and 3rd row which are lap only
• LATCH system, (Lower Anchors and Top tethers for CHildren) for child safety seat
• StabiliTrak, vehicle stability enhancement system
• Daytime running lamps, includes automatic exterior lamp control

ENGINE, VORTEC 5300 V8 SFI FLEX-FUEL

• capable of running on unleaded or up to 85% ethanol (295 HP [219.7 kW] @ 5200 rpm
• 335 lb.-ft. [452.3 N-m] @ 4000 rpm) (STD)

• Vehicle
• Rear Door Type: Cargo Doors
• Mileage
• EPA Fuel Economy Est - City (MPG): 14
• EPA Fuel Economy Est - Hwy (MPG): 18
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 160
• Cooling System
• Total Cooling System Capacity (qts): 16.8
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3600
• Gross Axle Wt Rating - Rear (lbs): 4000
• Curb Weight - Front (lbs): 2873
• Curb Weight - Rear (lbs): 2434
• Gross Vehicle Weight Rating Cap (lbs): 7200
• Gross Combined Wt Rating (lbs): 13,000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 600
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 7000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1000
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): N/A
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): N/A
• Suspension
• Suspension Type - Front: Torsion Bar
• Suspension Type - Rear: Multi-Link Coil
• Spring Capacity - Front (lbs): 3600
• Spring Capacity - Rear (lbs): 4000
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-floating
• Axle Capacity - Front (lbs): 3925
• Axle Capacity - Rear (lbs): 4000
• Axle Ratio (:1) - Front: 3.42
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): 46
• Shock Absorber Diameter - Rear (mm): 46
• Stabilizer Bar Diameter - Front (in): 1.18
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.0 x 1.1
• Rear Brake Rotor Diam x Thickness (in): 12.9 x 1.2
• Tires
• Front Tire Order Code: QJP
• Rear Tire Order Code: QJP
• Spare Tire Order Code: QJP
• Front Tire Size: P265/70R17
• Rear Tire Size: P265/70R17
• Spare Tire Size: P265/70R17
• Front Tire Capacity (lbs): 2134
• Rear Tire Capacity (lbs): 2134
• Spare Tire Capacity (lbs): 2134
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 7.0
• Rear Wheel Size (in): 17 x 7.0
• Spare Wheel Size (in): 16 x - TBD -
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 15.8
• Steering Ratio (:1), At Lock: 15.8
• Turning Diameter - Curb to Curb (ft): 43.7
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 31
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 130.0
• Length, Overall w/rear bumper (in): 219.3
• Width, Max w/o mirrors (in): 78.9
• Height, Overall (in): 75.4
• Overhang, Front (in): 37.0
• Overhang, Rear w/bumper (in): 52.3
• Ground to Top of Load Floor (in): 31.0
• Ground Clearance, Front (in): 9.8
• Ground Clearance, Rear (in): 8.4
• Rear Door Opening Height (in): - TBD -
• Rear Door Opening Width (in): - TBD -
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Seat 1 (in): 104.6
• Cargo Area Length @ Floor to Seat 2 (in): 69.6
• Cargo Area Length @ Floor to Seat 3 (in): 36.1
• Cargo Area Width @ Beltline (in): 49.2
• Cargo Box Width @ Wheelhousings (in): 49.1
• Cargo Box (Area) Height (in): 40.5
• Cargo Volume to Seat 1 (ft³): 131.6
• Cargo Volume to Seat 2 (ft³): 90.0
• Cargo Volume to Seat 3 (ft³): 45.7
• Interior Dimensions
• Passenger Capacity: 8
• Front Head Room (in): 40.7
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.2
• Front Hip Room (in): 61.4
• Second Head Room (in): 39.0
• Second Leg Room (in): 39.1
• Second Shoulder Room (in): 65.1
• Second Hip Room (in): 61.3
• Third Head Room (in): 38.6
• Third Leg Room (in): 36.1
• Third Shoulder Room (in): 64.4
• Third Hip Room (in): 49.2
• Summary

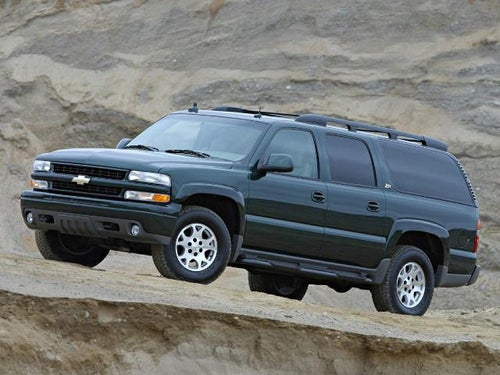

• Vehicle Name: Chevrolet Suburban
• Body Style: 4 Door 1500
• Body Code: ZW9
